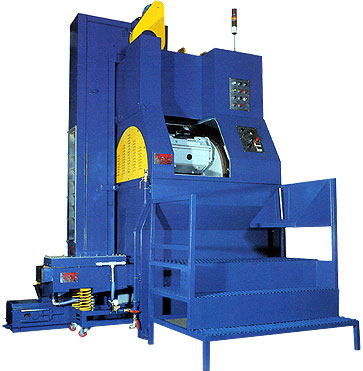

:::CENTRIFUGAL BARREL FINISHING MACHINE:::


VCA SERIES/Semi Automatic
For The Fastest Processing of Your Production Requirements

¡á Features
High Speed (Up to times faster than standard methods)
Very Quiet Operation
Variable Speed for Infinite Process Control
Removable "Hot Pour" Polyurethane Lining
Uniformed Finishing
Can Process Flat Thin Parts
Rubber Lining for Wet Areas


¡á Material Handling Features
 Media /Parts Separation
Rinsing
Media Return to Barrels

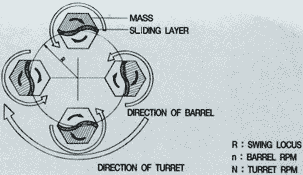

¡á How It Works
The VCA Series Centrifugal Barrel is equipped with four (4) barrels spaced evenly on a heavy duty turret.As the turret is rotated in one direction. The barrels rotate to the opposite direction effecting a 1:1 ratio. When the turret speed exceeds 60 RPM the mass in the barrel is subjected to high compressive forces causing the work mass to slide to the furthest wall of the barrel. The energy created in this process produces finishes up to thirty(30) times faster than conventional methods such as tumbling barrels and vibratory mills.

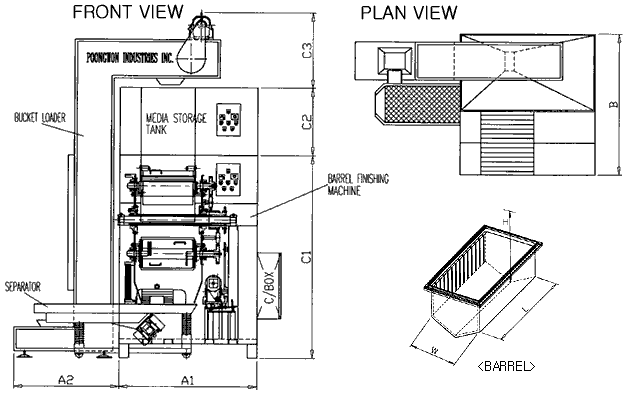

¡á Dimensions




¡á SPECIFICATIONS (Unit:mm)
MODEL
CAPACITY
(Littre)
M/C DIMENSION
BARREL
RPM
MAIN MOTOR
HP
A1
A2
B
C1
C2
C3
W x L x H
VCA-80
80§¤
1570
1050
1100
2170
710
810
206 x 440 x 260
150
7.5
VCA-120
120§¤
1600
1050
1100
2170
710
810
304 x 482 x 315
150
10
VCA-160
160§¤
1700
1050
1100
2170
810
810
304 x 570 x 315
150
15
VCA-220
220§¤
1900
1050
1100
2170
890
810
328 x 762 x 360
120
20
VCA-600
600§¤
1950
1100
1730
2200
1100
510
455 x 979 x 450
100
40
