:::CENTRIFUGAL BARREL FINISHING MACHINE:::




¢º2SIDED COMPARTMENT BARREL¢¸

¢ºSTANDARD BARREL¢¸
¢ºDOUBLE-ENDED BARREL¢¸


¢ºREMOVABLE PU LINING WITH
COMPARTMENT CAPAVILITY¢¸
¢ºFIXED BARRELS¢¸
¢ºPORTABLE BARRELS¢¸


¡á How It Works


The VC & VC8 Series machines are equipped with 4 barrels spaced evenly on a heavy duty turret. As the turret is rotated in one direction. The barrels rotate to the opposite direction effecting a 1:1 ratio. When the turret speed exceeds 60 RPM the mass in the barrel is subjected to high compressive forces causing the work mass to slide to the furthest wall of the barrel. The energy created in this process produces finishes up to thirty(30) times faster than conventional methods such as tumbling barrels and vibratory mills.


¡á Features

Finishing cycles up to 30 times faster than barrels
Consistent finishes
Easy installation (can work in cells)
Very quiet operation

¡á Optional Features
Variable speed for infinite process control
Separation
Removable "Hot pour" linings
Compartmentized Barrels
Automation (VCA Series)

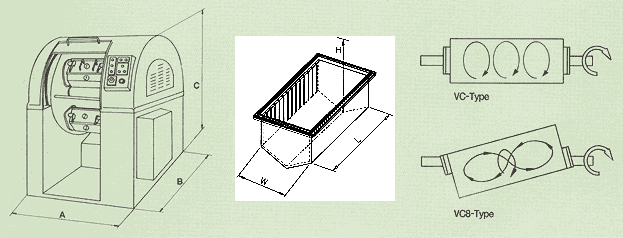

¡á Dimensions



¡á SPECIFICATIONS (Unit:mm)
MODEL
CAPACITY
(Littre)
A
B
C
BARREL
BARREL
RPM
MAIN MTR.
HP
WEIGHT
(Kgs)
W x L x H
VC-20
20§¤
880
960
1370
180x200x200
210
2
650
VC-30
30§¤
880
960
1370
180x280x201
210
3
700
VC-80
80§¤
1230
1340
2000
260x440x260
150
7.5
1350
VC-120
120§¤
1230
1340
2000
304x480x315
150
10
1500
VC-160
160§¤
1320
1340
2000
304x560x315
150
15
1620
VC-220
220§¤
1500
1340
2000
328x762x360
120
20
1900
